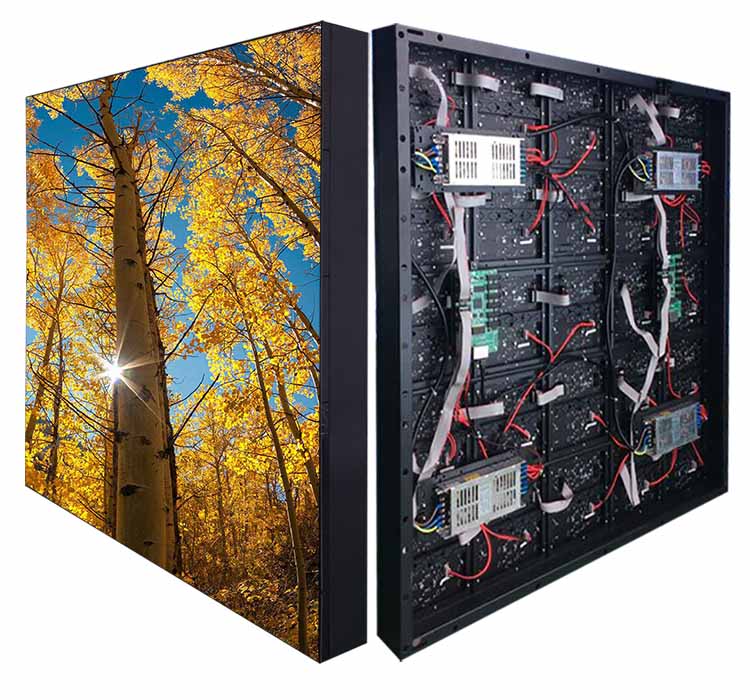

 INDOOR SIMPLE BOX  SERIES
Product parameters

1) the design of the system is advanced and reasonable, the display effect is stable, and the installation and maintenance are convenient.
2) all-weather work: realistic colors, high refresh frequency, anti-static, dustproof, good heat dissipation, high cost performance.
3) display mode: left and right movement, up and down movement, Zola curtain, right pull screen, opening and closing, flashing, visible, and other ways.
4) using program editing and playback software, you can edit, add, delete, and modify text, graphics, images and other information through mouse editing. The content of the arrangement is stored in the control card, and the information playback is automatically displayed according to the program list.
5) luminous intensity: in the visible distance, when the sunlight is directly on the screen surface, the display content is still clearly visible.
6) the angle of view is good: both horizontal and vertical have larger visual angle, which is suitable for the environment with large horizontal distribution and high drop height.

Product information

Item P2.0 P2.5 P3 P4 P5
Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED Encapsulation SMD1010 SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density 250000dot/㎡ 160000dot/㎡ 111111dot/㎡ 62500dot/㎡ 40000dot/㎡
Module Resoulution 64*64(W*H) 64*64(W*H) 64*64(W*H) 64*32(W*H) 64*32(W*H)
Module Size 128mm*128mm(W*H) 160mm*160mm(W*H) 192mm*192mm(W*H) 256mm*128mm(W*H) 320mm*160mm(W*H)
Drive Mode 1/32 Scan 1/16,1/32Scan 1/16 Scan 1/16 Scan 1/16 Scan
Cabinet Resolution 256*256(W*H) 192*192(W*H) 192*192(W*H) 128*128(W*H) 256*128(W*H)
Cabinet Size(W*H*D)/mm 512*512*66 480*480*66 576*576*66 512*512*66 640*640*66
Cabinet Weight 4.6±0.5kg 4.6±0.5kg 5.8±0.5kg 5.8±0.5kg 5.8±0.5kg
Brightness ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡
Color Temperature 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable
Max Power Consumption 750W/㎡ 750W/㎡ 750W/㎡ 750W/㎡ 750W/㎡
Average Power Consumption 250W/㎡ 250W/㎡ 250W/㎡ 250W/㎡ 250W/㎡
Viewing Angle H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160°
Refresh Rate ≥1920Hz ≥1920Hz ≥1200Hz ≥1200Hz ≥1200Hz
Grey Scale 16384 16384 4k 4k 4k
Best Viewing Distance ≥2m ≥3m ≥3m ≥4m ≥5m
Protection Level IP20 IP20 IP20 IP20 IP20
Maintain Style Maintain Maintain Maintain Maintain Maintain
Operating Voltage AC220V/110V AC220V/110V AC220V/110V AC220V/110V AC220V/110V
Working Temperature -20℃/+50℃ -20℃/+50℃ -20℃/+50℃ -20℃/+50℃ -20℃/+50℃
Operating Humidity 10%-85% 10%-85% 10%-85% 10%-85% 10%-85%
Lifetime 100000H 100000H 100000H 100000H 100000H

Installation diagram
