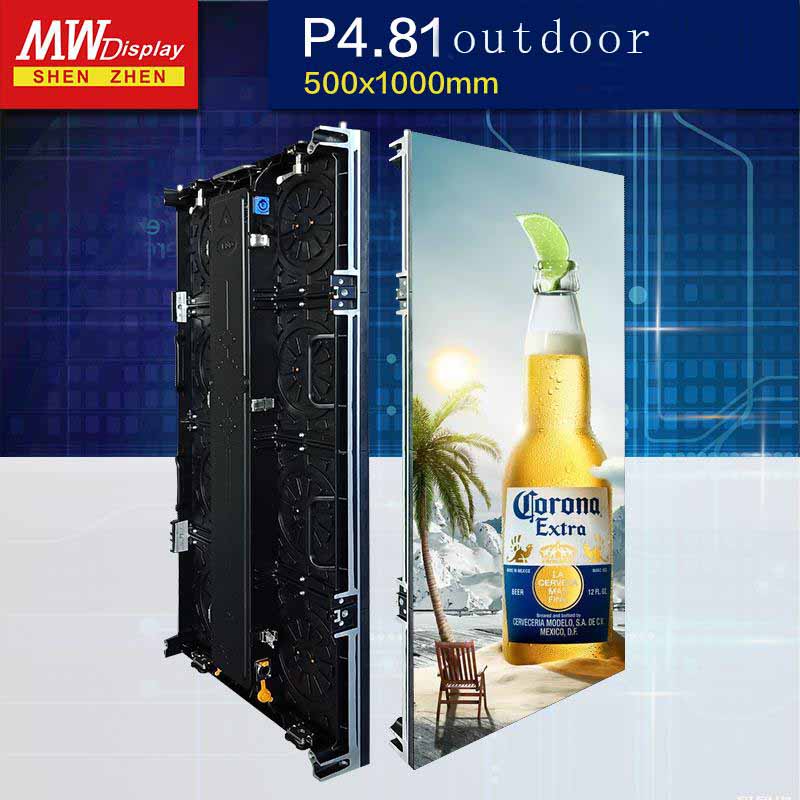

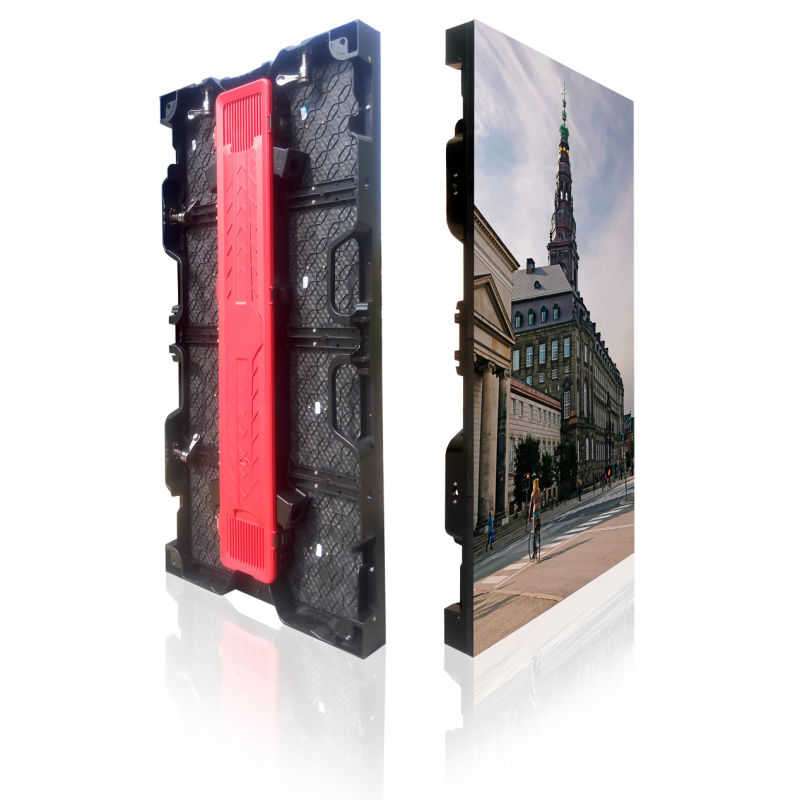

P4.81-OUTDOOR RENTAL
Product parameters

P4.81 Rental LED custom display box with 500mm / 1000mm) functional advantages:

1, Ultra-thin: the box is made of die-cast aluminum, the thickest part of the box is only 66mm, the strength is high, the toughness is strong, the precision is high, and the deformation is not easy

2, compatibility: new structure design to meet the requirements of hoisting and stacking;

3, fast: the upper and lower parts of the box use fast locking mechanism, 10 seconds can complete the installation of a box, the installation accuracy is high; the accuracy of the box stitching crevice reaches 0.05mm, the whole screen to achieve true seamless splicing;

4, reliable: high strength and hardness, good heat dissipation effect;

5, contrast: a novel mask design, contrast up to 3000;

6, high refresh: the refresh rate is 750Hz, the special IC can reach 2200Hz;

7, quiet: DC fan noise low, almost silent;

8, high stability: the system adopts double backup system, box circuit structure adopts no wire layout design;

9, wide application: stage lease, entertainment places and other indoor and outdoor environment;

Product information
Item P4.81
Pixel Pitch 4.81mm
Pixel Configuration 1R1G1B
LED Encapsulation SMD2727
Pixel Density 43264dot/㎡
Module Resoulution 52*52(W*H)
Module Size 250mm*250mm(W*H)
Drive Mode 1/13 Scan
Cabinet Resolution 104*208(W*H)
Cabinet Size(W*H) 500mm*1000mm
Cabinet Weight 12±0.5kg
Brightness ≥5800CD/㎡
Color Temperature 3200-9300K/Adjustable
Max Power Consumption 800W/㎡
Average Power Consumption 300W/㎡
Best Viewing Angle H:160°V:160°
Display Mode/Max 1024*768/1280*1024
Refresh Rate ≥1920Hz
Best Viewing Distance ≥5m
Protection Level IP65
Maintain Style Maintain
Operating Voltage AC220V/110V
Working Temperature -20℃/+50℃
Operating Humidity 10%-85%
