1, the effect of excellence: the use of dynamic scanning technology, stable picture, no miscellaneous points, the image effect is clear, animation effects vivid and diverse, video effects smooth and realistic;
2, rich content: can display text, graphics, images, animation, video information;
3, the way is flexible: users can arbitrarily display the display mode;
4, large amount of information: the information displayed is unrestricted;
5, the angle of view is excellent: in the horizontal and vertical are larger viewing angle, which is horizontal, wide and height gap is suitable for the environment;
6, the reliability is strong: the use of distributed scanning technology and modular design technology, reliability and stability is higher;
7, quality assurance: the use of imported light-emitting materials, high-quality IC chip, noise free high-power power supply, tensile shock, 10 years long life;
8 、 convenient maintenance: modular design, easy installation and maintenance.
Item | p1.9 |
Pixel pitch | 1.923mm |
pixel density | 270400点/㎡ |

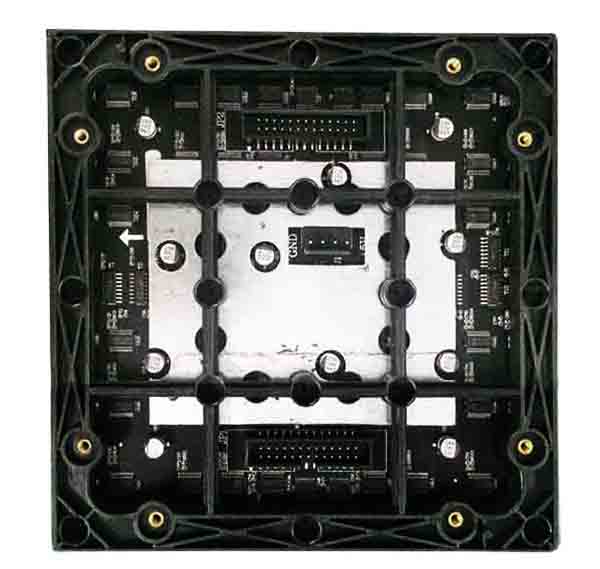

module resolution | 104*78 |
module size | 200*150*2 |
configuration | 1R1G1B |
Encapsulation | SMD1515 |
Operating voltage | AC:110V-240V、50-60Hz |
Drive mode | MBI5153/ICN2053 |

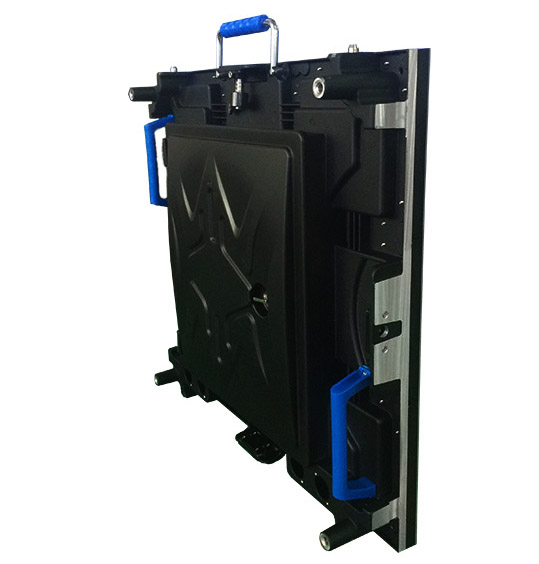

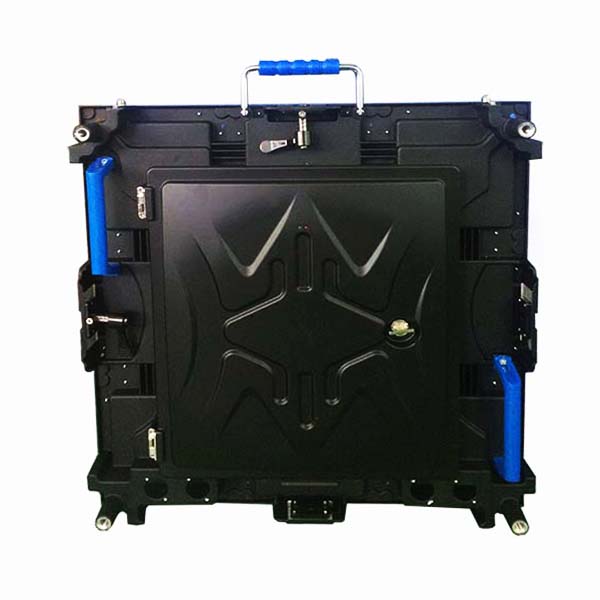

Cabinet material | Die-casting Aluminum |
Cabinet weight | 3.5kg |
Cabinet resolution | 208*156 |
Cabinet size(mm) | 400*300*55 |
Brightness | 200-800CD/㎡ |
Color temperature | 2000K-9500K(adjustable) |
Viewing angle | H:160°V:160° |
planeness | ≥98% |
space | <0.1mm |
Max power consumption | ≤500W/㎡ |
Average power consumption | 100W/㎡-300W/㎡ |
Frame Frequency | 60Hz |
Refresh Rate | 1920-3840HZ |
Grey | 16384 |
Protection Level | IP41 |
Lifetime | 10万小时 |
Working Temperature | 10%-90%RH |
Operating Humidity | -10~60℃ |
software | Windows XP,WIN7/8/10 |
