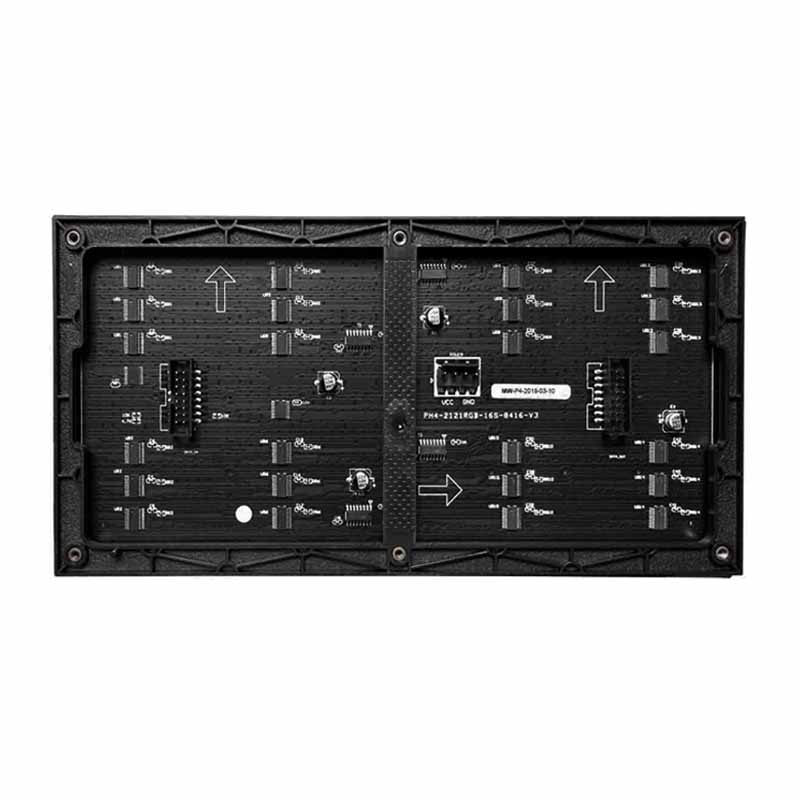

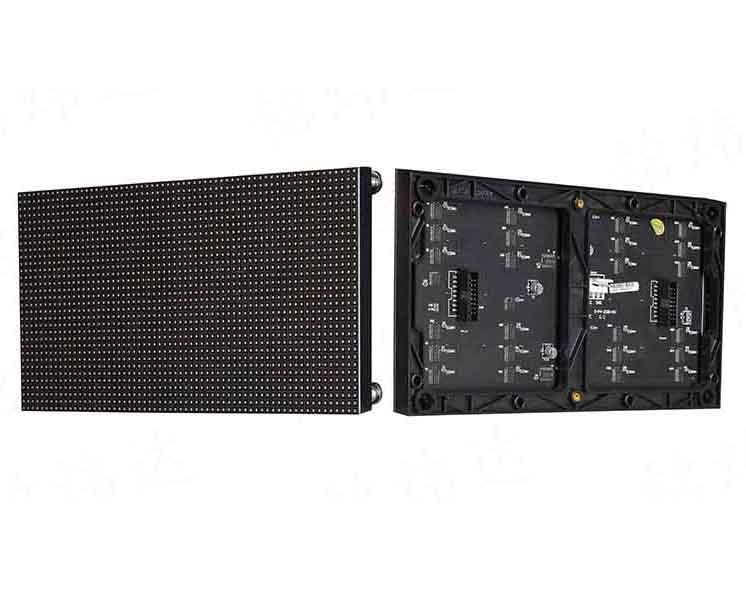

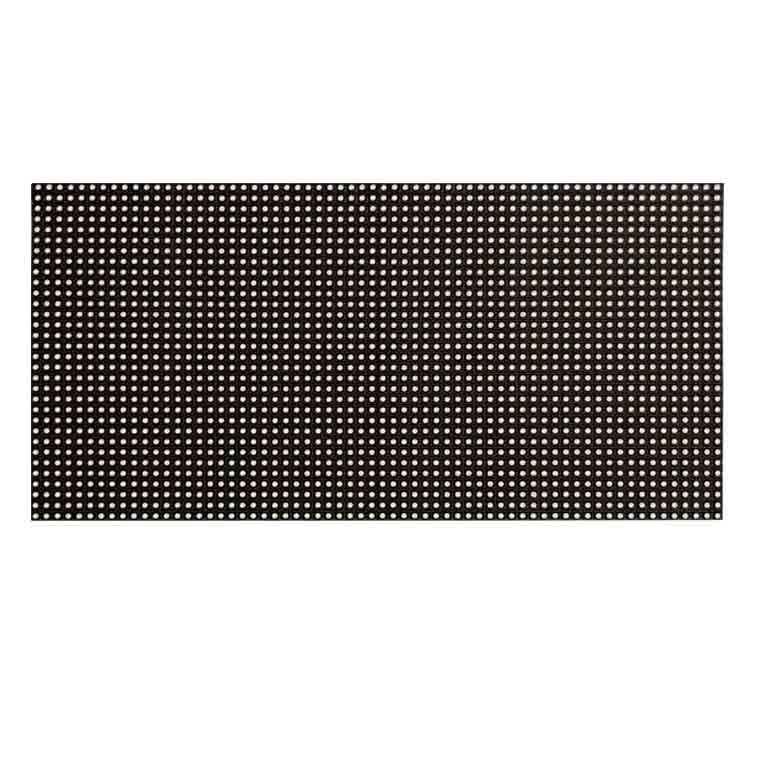

P4-INDOOR STADIUM
Product parameters
Item P4
Pixel Pitch 4mm
Pixel Configuration 1R1G1B
LED Encapsulation SMD2121
Pixel Density 62500dost/㎡
Module Resoulution 64*32(W*H)
Module Size 256mm*128mm(W*H)
Drive Mode 1/16 Scan
Cabinet Resolution 128*128(W*H)
Cabinet Size(W*H*D)/mm 512*512*66
Cabinet Weight 5.8±0.5kg
Brightness ≥1000CD/㎡
Color Temperature 3200-9300K/Adjustable
Max Power Consumption 750W/㎡
Average Power Consumption 300W/㎡
Best Viewing Angle H:150°V:120°
Refresh Rate ≥1200Hz
Grey Scale 4k
Best Viewing Distance ≥4m
Protection Level IP20
Operating Voltage AC220V/110V
Worting Temperature -20℃/+50℃
Operating Humidity -20-60/10%-85%
Lifetime 50,000H
