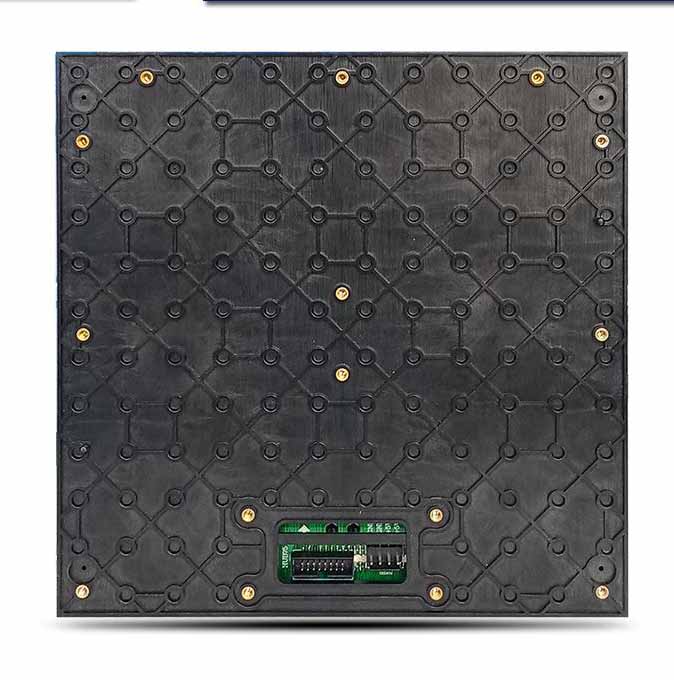

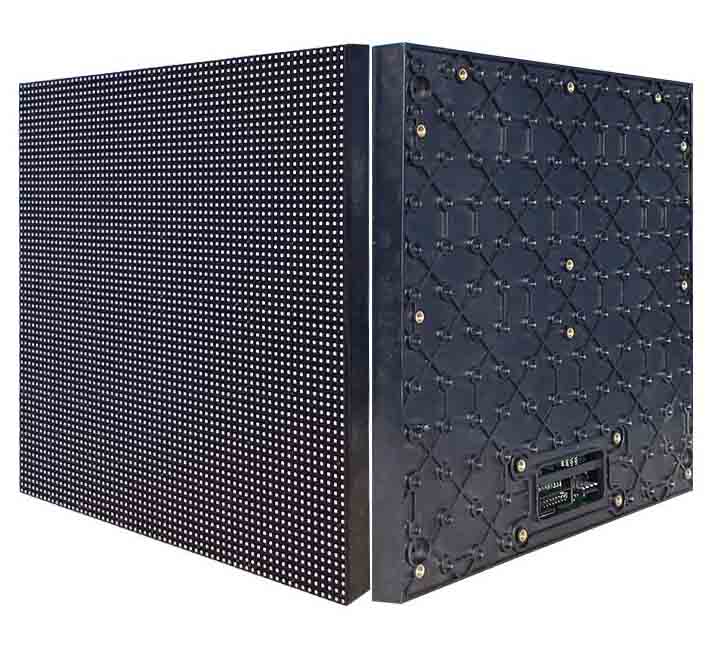

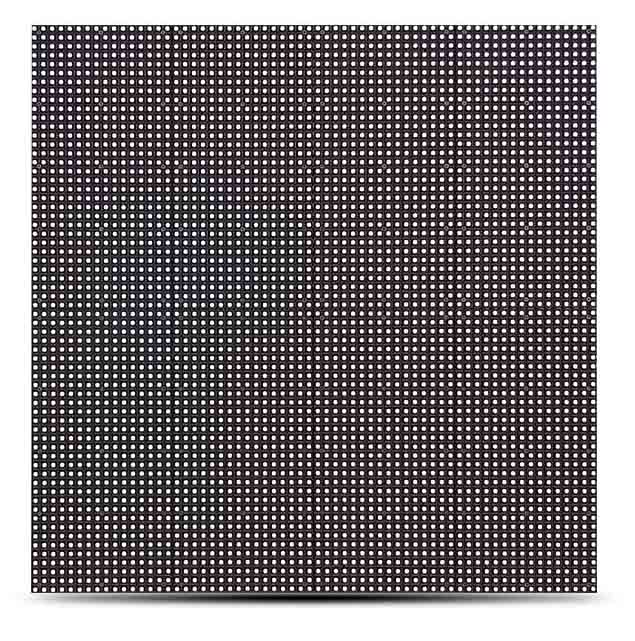

P4.81-OUTDOOR STADIUM
Product parameters
Item P4.81
Pixel Pitch 4.81mm
Pixel Configuration 1R1G1B
LED Encapsulation SMD2727
Pixel Density 43264dost/㎡
Module Resoulution 52*52(W*H)
Module Size 250mm*250mm(W*H)
Drive Mode 1/13 Scan
Cabinet Resolution 104*208(W*H)
Cabinet Size(W*H) 500mm*1000mm
Cabinet Weight 12±0.5kg
Brightness ≥5800CD/㎡
Drive Mode 1/13 Scan
Max Power Consumption 800W/㎡
Average Power Consumption 300W/㎡
Best Viewing Angle H:140°V:120°
Display Mode Max1024*768/1280*1024
Refresh Rate ≥1920Hz
Best Viewing Distance ≥5m
Protection Level IP65
Operating Voltage AC220V/110V
Working Temperature -20℃/+50℃
Operating Humidity -20-60/10%-85%
