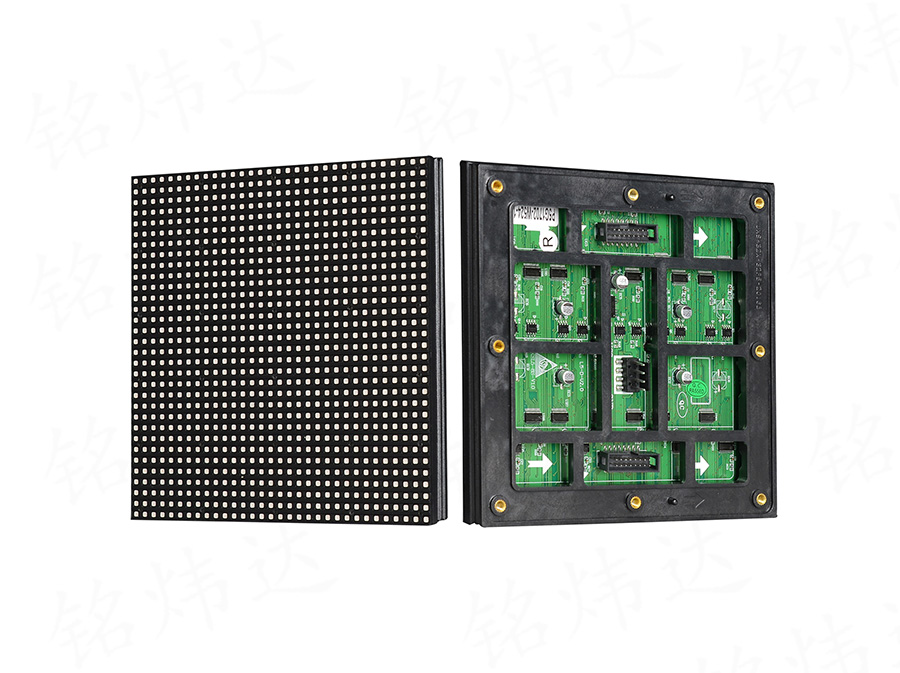

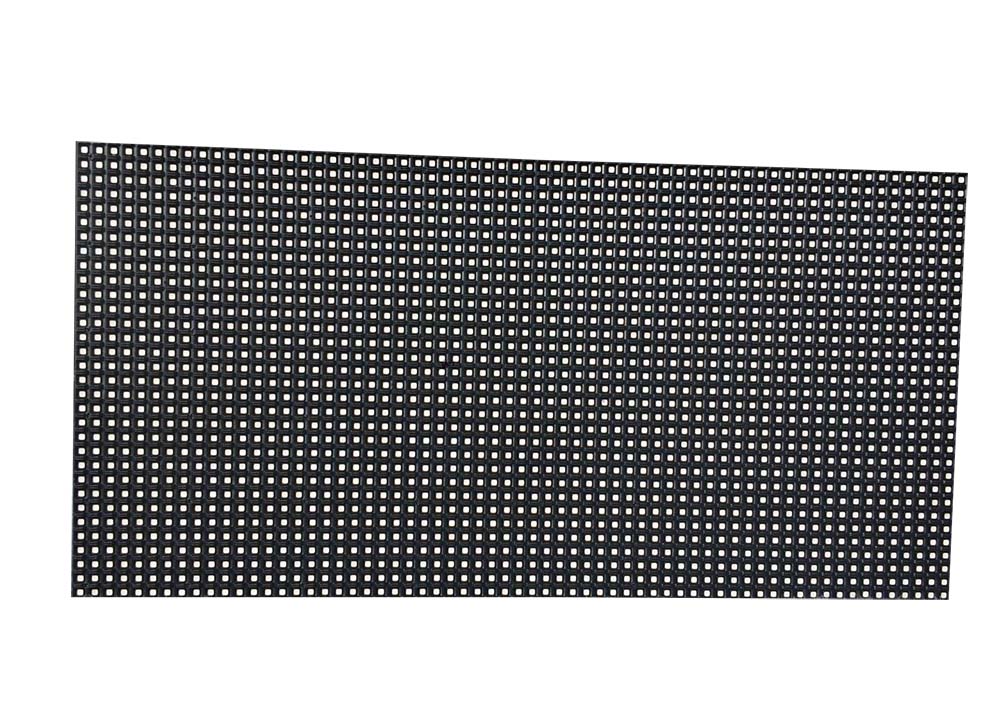

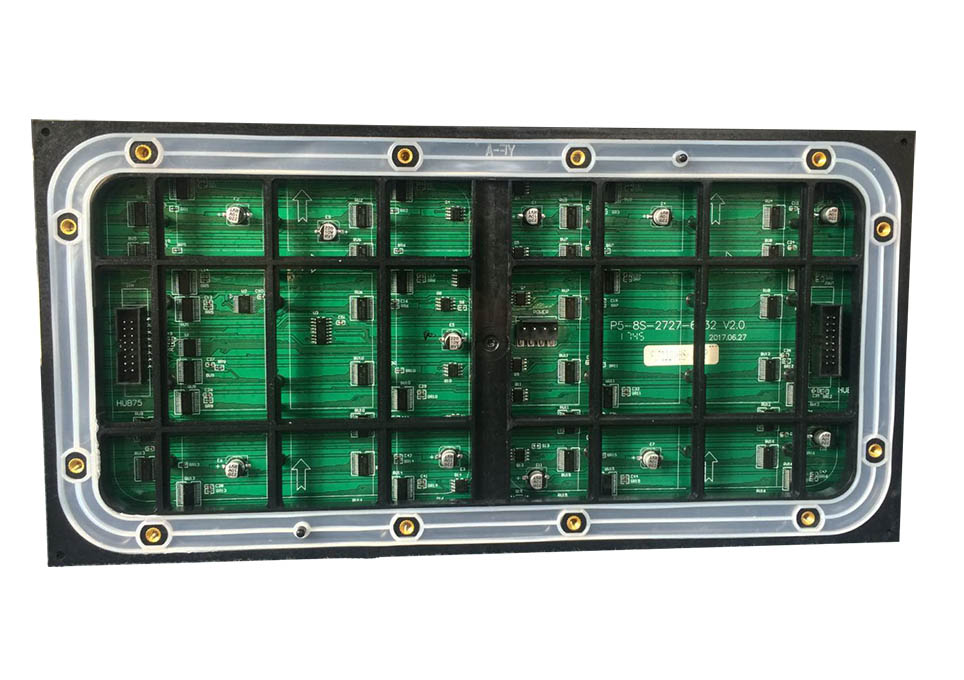

P5-OUTDOOR STADIUM
Product parameters
Item P5
Pixel Pitch 5mm
Pixel Configuration 1R1G1B
LED Encapsulation SMD2727
Pixel Density 40000dost/㎡
Module Resoulution 64*32(W*H)
Module Size 320mm*160mm(W*H)
Drive Mode 1/8 Scan
Cabinet Resolution 128*128(W*H)
Cabinet Size(W*H) 640mm*640mm
Cabinet Weight 9±0.5kg
Brightness ≥6000CD/㎡
Drive Mode 1/8 Scan
Max Power Consumption 800W/㎡
Average Power Consumption 300W/㎡
Best Viewing Angle H:150°V:120°
Display Mode Max1024*768/1280*1024
Refresh Rate ≥1200Hz
Best Viewing Distance ≥5m
Protection Level IP65
Operating Voltage AC220V/110V
Working Temperature -20℃/+50℃
Operating Humidity -20-60/10%-85%
