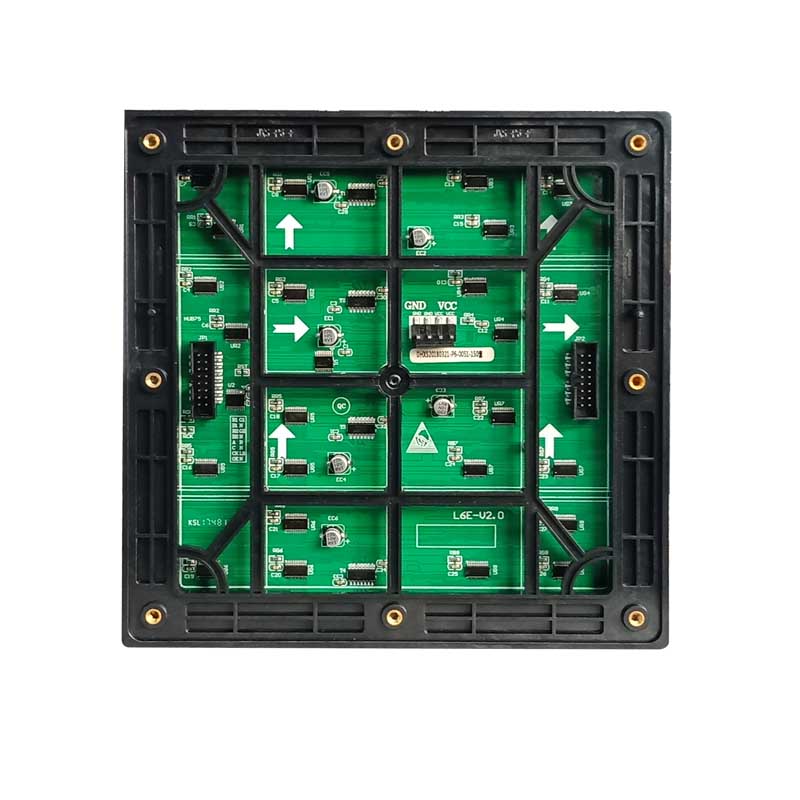

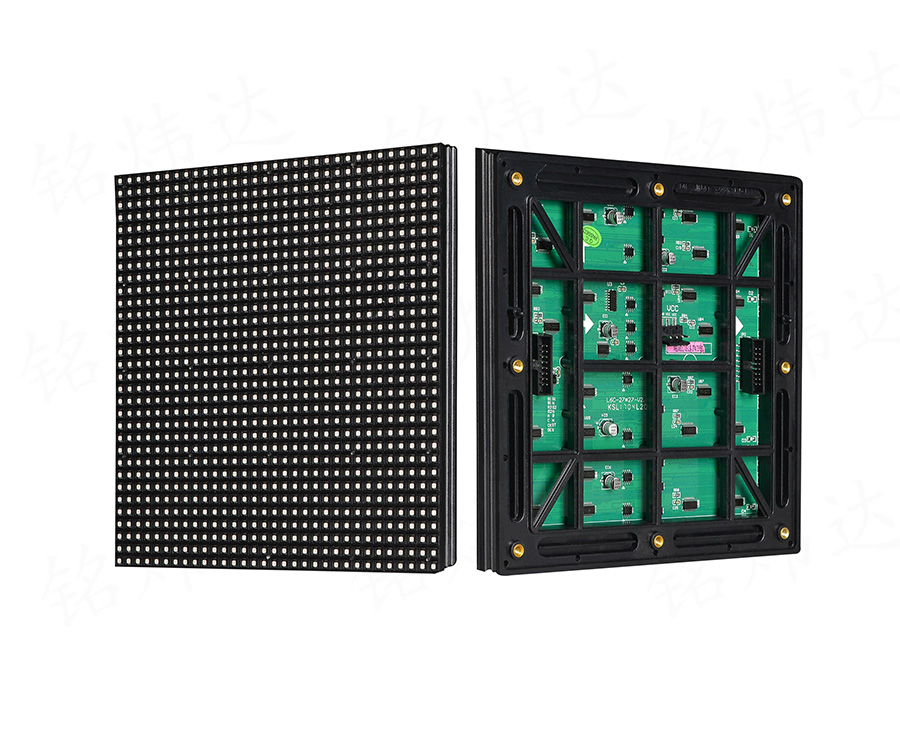

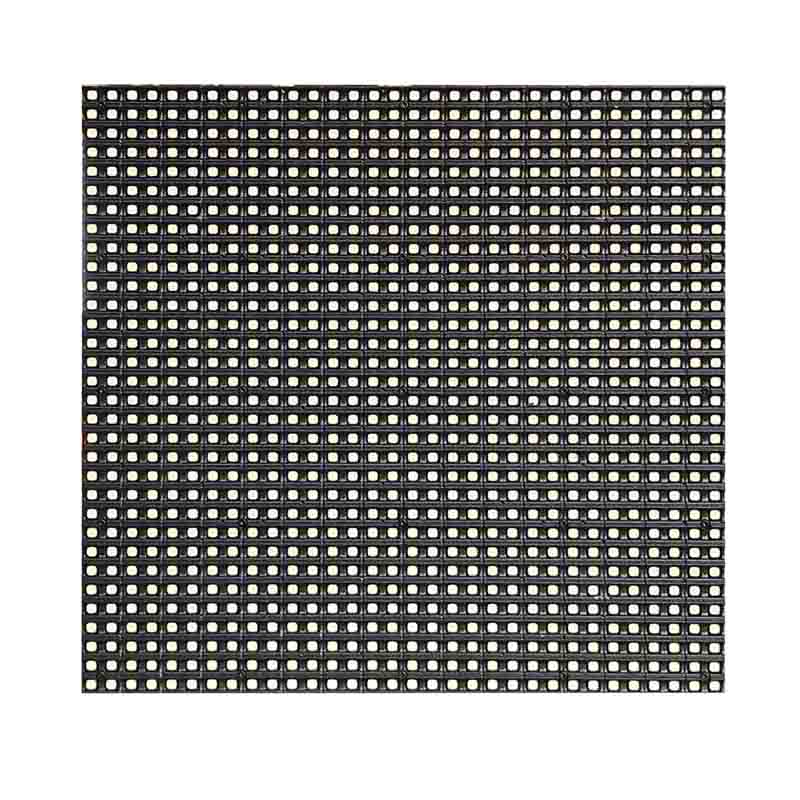

P6-OUTDOOR STADIUM
Product parameters
Item P6
Pixel Pitch 6mm
Pixel Configuration 1R1G2B
LED Encapsulation SMD3535
Pixel Density 27777dost/㎡
Module Resoulution 32*32(W*H)
Module Size 192mm*192mm(W*H)
Drive Mode 1/8 Scan
Cabinet Resolution 96*96(W*H)
Cabinet Size(W*H) 576mm*576mm
Cabinet Weight 8±0.5kg
Brightness ≥6000CD/㎡
Drive Mode 1/8 Scan
Max Power Consumption 800W/㎡
Average Power Consumption 300W/㎡
Best Viewing Angle H:150°V:120°
Display Mode Max1024*768/1280*102
Refresh Rate ≥1200Hz
Best Viewing Distance ≥6m
Protection Level IP65
Operating Voltage AC220V/110V
Working Temperature -20℃/+50℃
Operating Humidity -20-60/10%-85%
