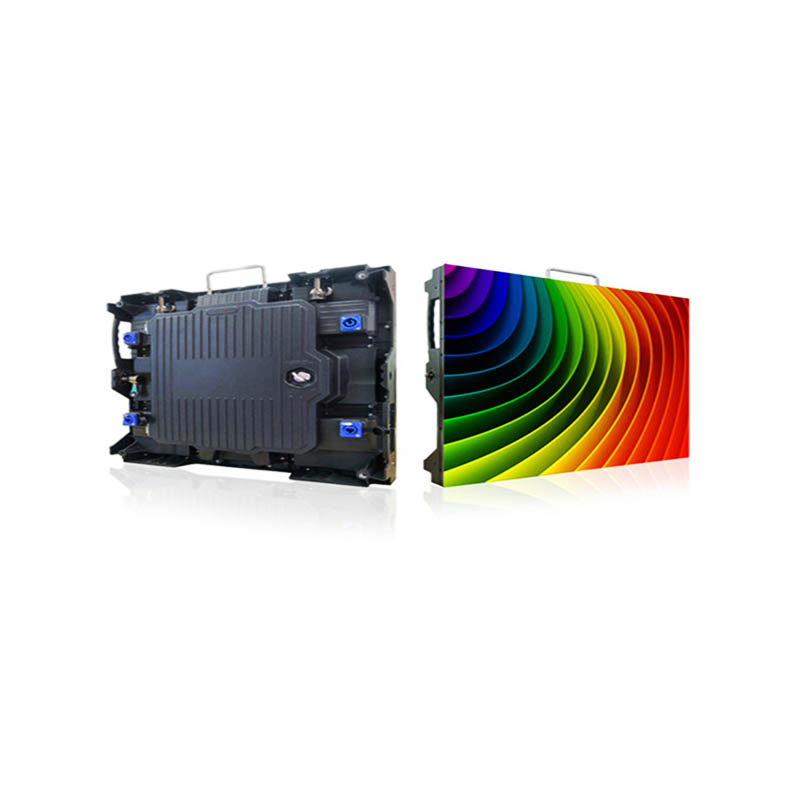

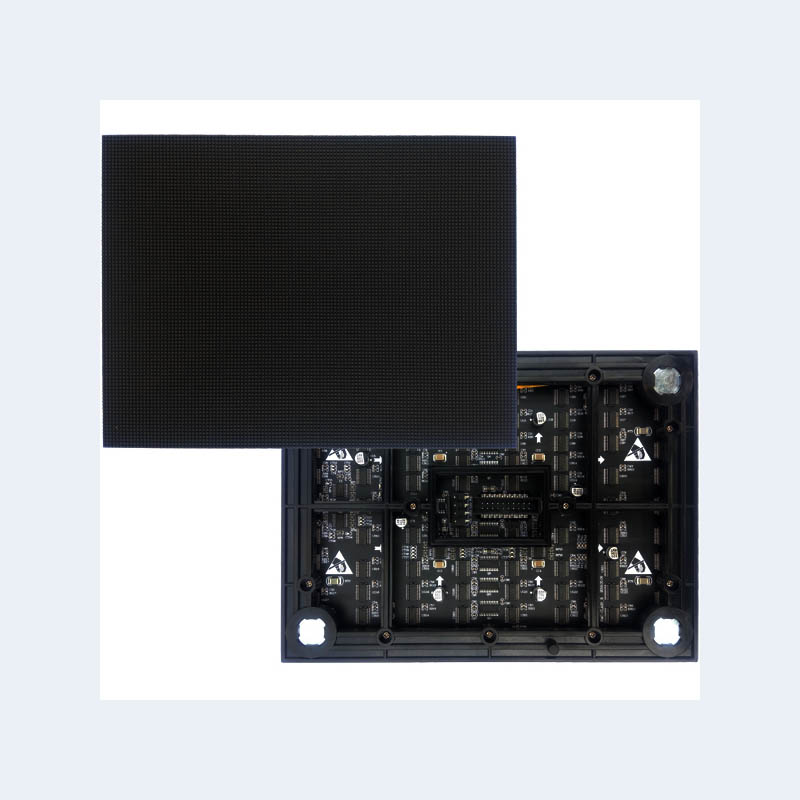

P1.667 Indoor Small Space Module
Product parameters
Item p1.6
Pixel pitch 1.667mm
pixel density 360000点/㎡
module resolution 120*90
module size 200*150*2
configuration 1R1G1B
Encapsulation SMD1010
Operating voltage AC:110V-240V、50-60Hz
Drive mode 1/32
Cabinet material Die-casting Aluminum
Cabinet weight 3.5kg
Cabinet resolution 240*180
Cabinet size(mm) 400*300*55
Brightness 200-800CD/㎡
Color temperature 2000K-9500K(adjustable)
Viewing angle H:160°V:160°
planeness ≥98%
space <0.1mm
Max power consumption ≤550W/㎡
Average power consumption 100W/㎡-300W/㎡
Frame Frequency 60Hz
Refresh Rate 1920-3840HZ
Grey 16384
Protection Level IP31
Lifetime 100000H
Working Temperature 10%-90%RH
Operating Humidity -10~60℃
software Windows XP,WIN7/8/10
