P5-IRREGULAR SCREEN
Product parameters

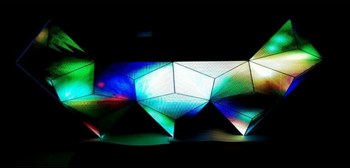

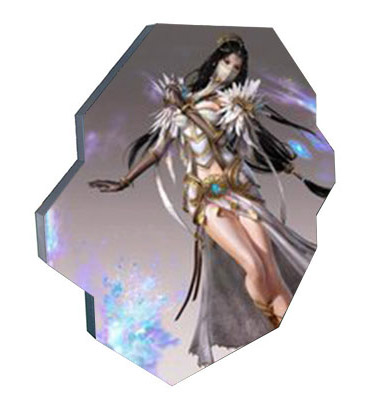

Special-shaped screen features:Compared with the conventional LED display panel, more attention to the structure of the breakthrough.At present, LED special-shaped screen modules are mainly sector, arc, circular and cylindrical, triangular and other structural forms.Compared with the conventional LED display screen, it is mainly used in performing arts venues, outdoor media, pavilion plaza, bars and other environments.Because the appearance and structure of LED special-shaped screen are different, the technical requirements of the manufacturer are more stringent, and the appearance of the special-shaped module makes the LED special-shaped screen have better modeling ability.Triangle, trapezoid and other special-shaped modules, can be assembled into spherical, diamond, gemstone, star and other regular or irregular geometric LED display screen.

Product information
Item P3 P4 P5
Pixel Pitch 3mm 4mm 5mm
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B
LED Encapsulation SMD2121 SMD2121 SMD3528
Pixel Density 111111dot/㎡ 62500dot/㎡ 40000dot/㎡
Module Resoulution 64*64(W*H) 64*32(W*H) 64*32(W*H)
Module Size 192mm*192mm(W*H) 256mm*128mm(W*H) 320mm*160mm(W*H)
Drive Mode 1/16 Scan 1/16 Scan 1/16 Scan
Cabinet Resolution 192*192(W*H) 128*128(W*H) 256*128(W*H)
Cabinet Size(W*H*D)/mm 576*576*66 512*512*66 640*640*66
Cabinet Weight 5.8±0.5kg 5.8±0.5kg 5.8±0.5kg
Brightness ≥1000CD/㎡ ≥1000CD/㎡ ≥1000CD/㎡
Color Temperature 3200-9300K/Adjustable 3200-9300K/Adjustable 3200-9300K/Adjustable
Max Power Consumption 750W/㎡ 750W/㎡ 750W/㎡
Average Power Consumption 250W/㎡ 250W/㎡ 250W/㎡
Viewing Angle H:160°V:160° H:160°V:160° H:160°V:160°
Refresh Rate ≥1200Hz ≥1200Hz ≥1200Hz
Grey Scale 4k 4k 4k
Best Viewing Distance ≥3m ≥4m ≥5m
Protection Level IP31 IP31 IP31
Maintain Style Maintain Maintain Maintain
Operating Voltage AC220V/110V AC220V/110V AC220V/110V
Working Temperature -20℃/+50℃ -20℃/+50℃ -20℃/+50℃
Operating Humidity 10%-85% 10%-85% 10%-85%
Lifetime 100000H 100000H 100000H
